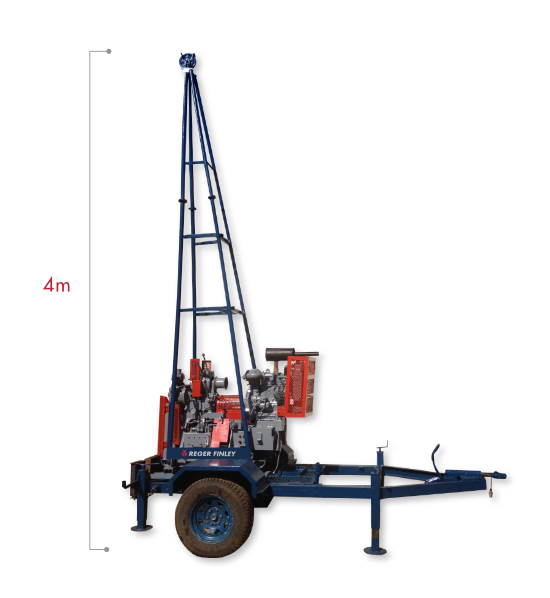

SPECIFICATION
DRILL CAPACITY
  • NQ-50meter
SKID OR TRAILER MOUNTED
  • Skid or Trailer Mounted
MAST
  • 3 meter length rod pull
ENGINE
  • Lister, Diesel, 8.5 Kw @ 1800 Rpm
HOIST
  • Cable: 10mm Wire Rope, 20 meter Capacity
  • Maximum Lifting Force, (Single Rope) 700kg
WATER PUMP
  • Engine: Honda GX 240
  • Pump: FMC Bean R10

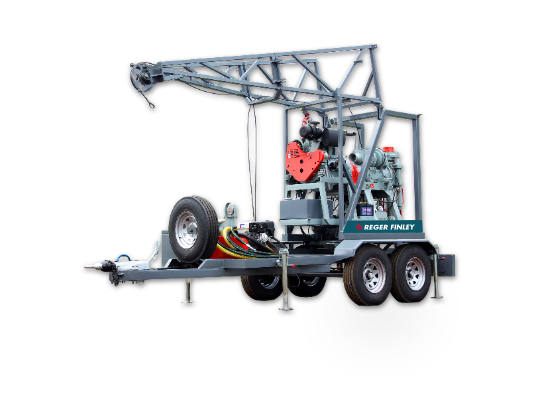

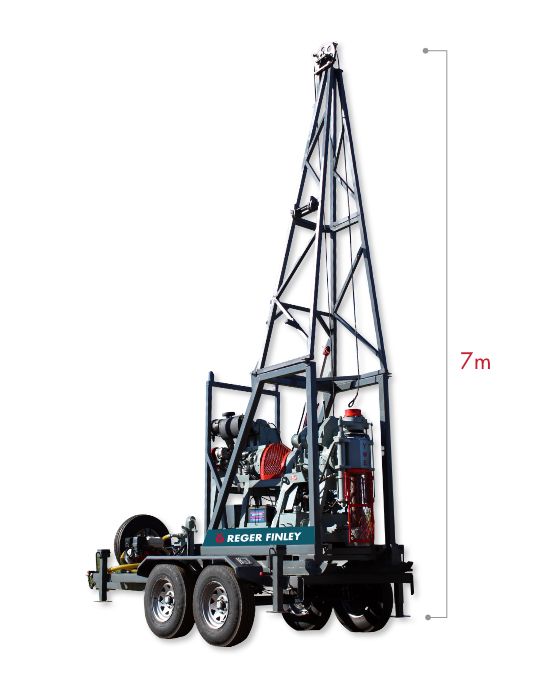

SPECIFICATION
DRILL CAPACITY
  • BQ : 230 meter
  • NQ : 180 meter
  • HQ : 110 meter
SKID OR TRAILER MOUNTED
  • Skid or Trailer Mounted
MAST
  • 6 meter length rod pull
ENGINE
  • Make : Deutz (KHM) or Kirloskar,
  • F3L912, 32 Kw @ 2200 Rpm
HOIST
  • Cable: 10mm Wire Rope, 35 meter Capacity
WATER PUMP
  • Engine: Honda GX 240
  • Pump: FMC Bean R10

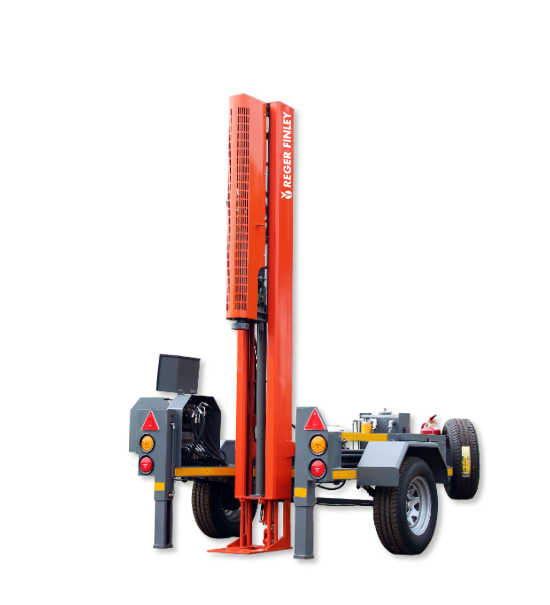

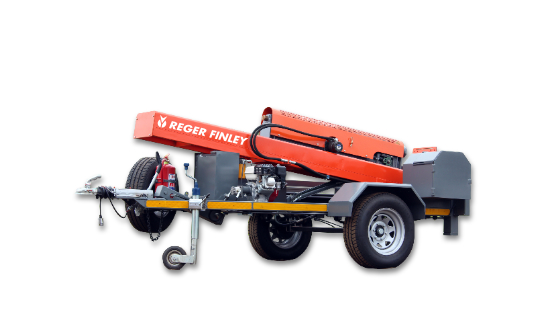

(Dynamic Probe Super Heavy )
TECHNICAL
  • Its compact trailer mounted design and packaging ensures that the DPSH is highly manoeuvrable and mobile.
  • The machine is hydraulically operated and therefore boosts productivity and limits operator error.
  • The result is exceptionally accurate due to the fact that the weight is hydraulically lifted to the precise preset below height.
SPECIFICATION
  • The weight is 63,5 Kg and have a falling distance of 760 mm
  • 3 Hydraulically Leveling Jacks
  • Hydraulic Mast Lift
  • Foot Clamp and Dump Table
  • Weight Carrier Beam are lifted by means of a hydraulic cylinder
  • Rods are pulled from the hole with the same hydraulic cylinder
